Post Caps for Aluminium Posts – WPC Fence
Aluminium Post Cap Details

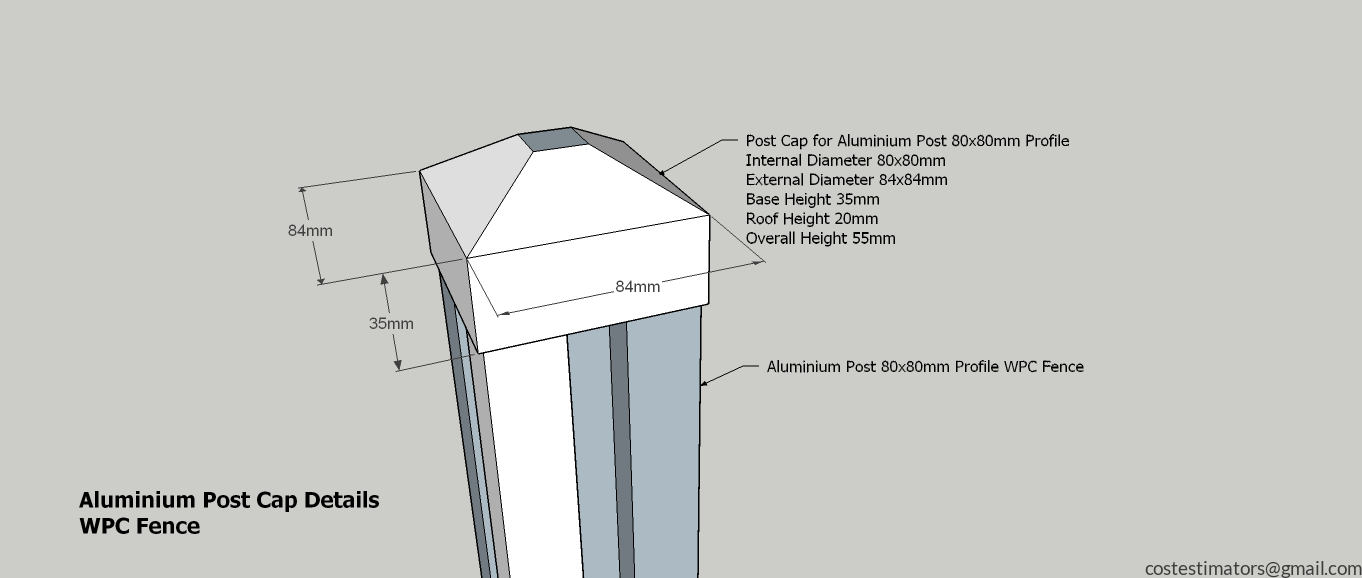

Fabrication Drawing for Fence Post Cap:
Aluminium Post Caps (Square Profile).
Post caps are usually made from powder-coated aluminium, WPC, PVC, HDPE, galvanized or stainless steel.
Pyramid roofed cap:
Internal diameter 80x80mm
External Diameter 84x84mm
Base Height 35mm
Roof Height 20mm
Overall Height 55mm
Overall Height Options Available in the Market:
– 1.25 inches
– 1.30 inches
– 1.50 inches
– 1.61 inches
– 2.16 inches (5.5 cm)

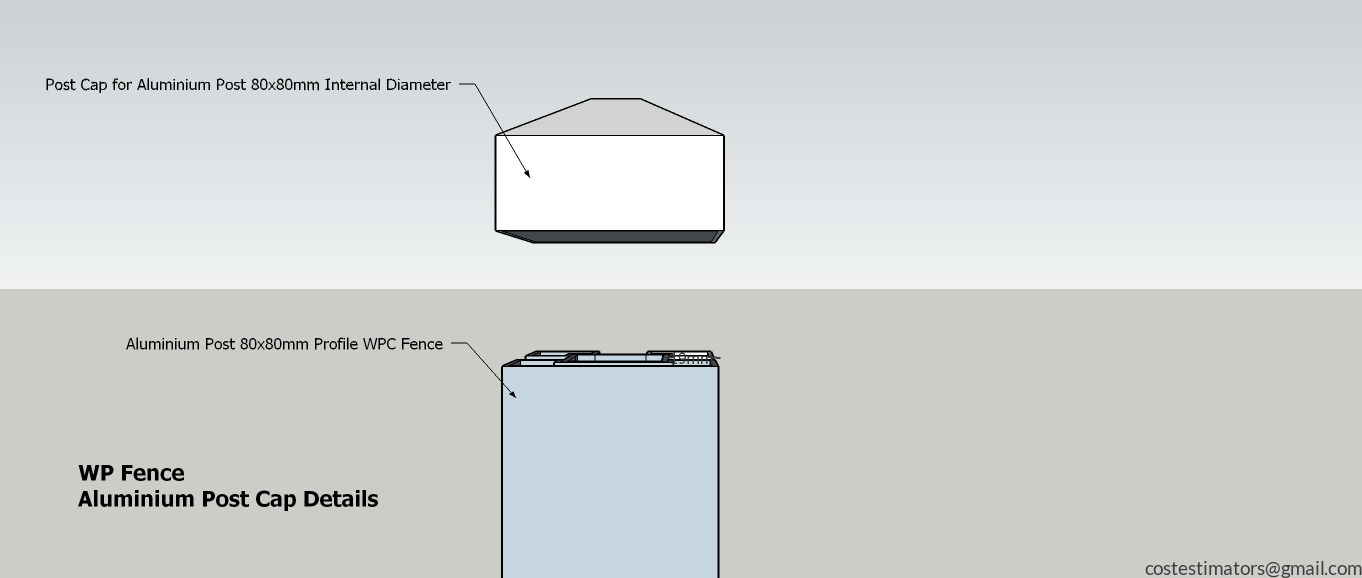

Aluminium Post Cap Details_2

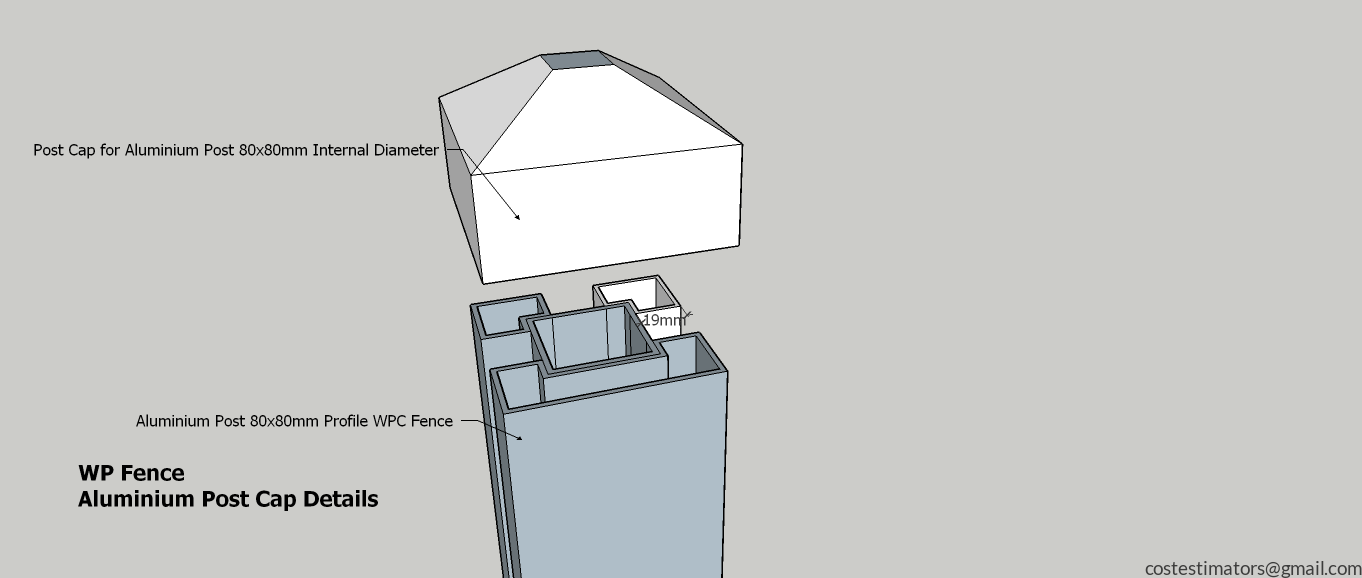

Aluminium Post Cap Details_4

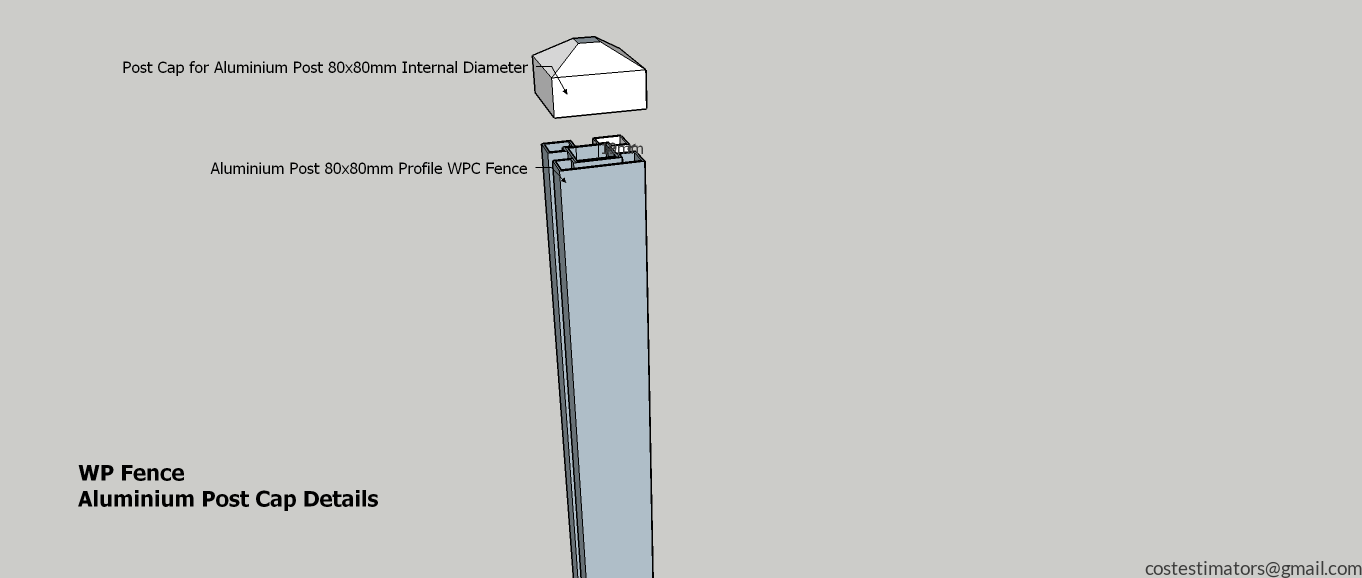

Aluminium Post Cap Details_5
