Aluminium Post Cross Section – WPC Fencing
WPC Fence Aluminium Post Cross Section Details

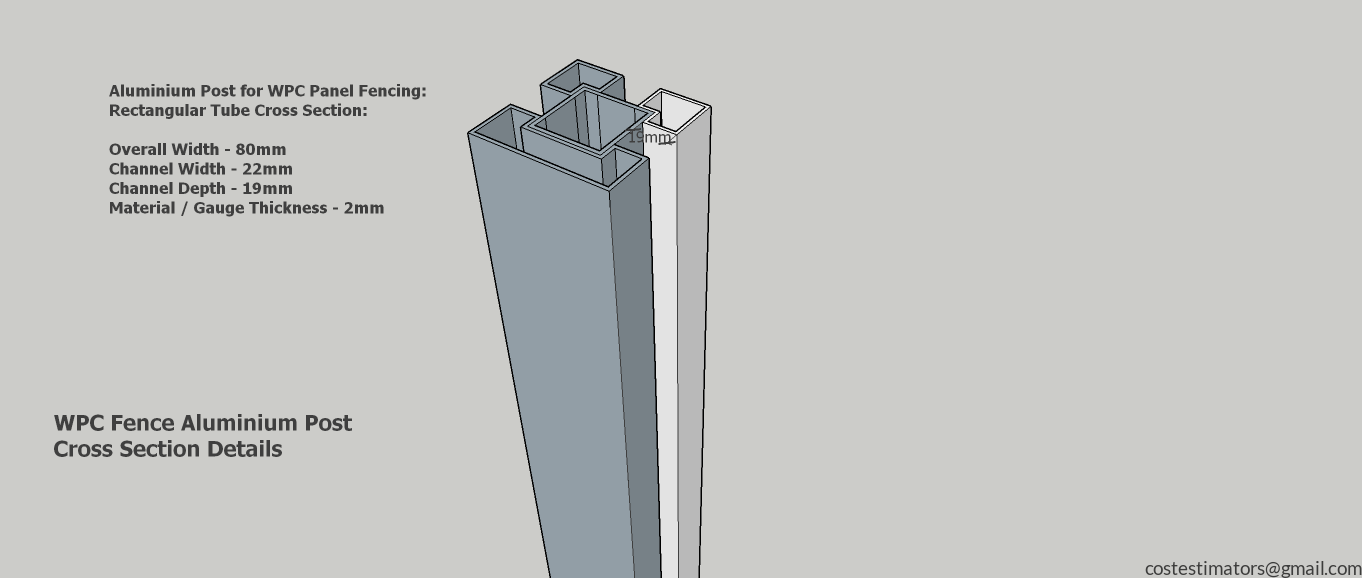

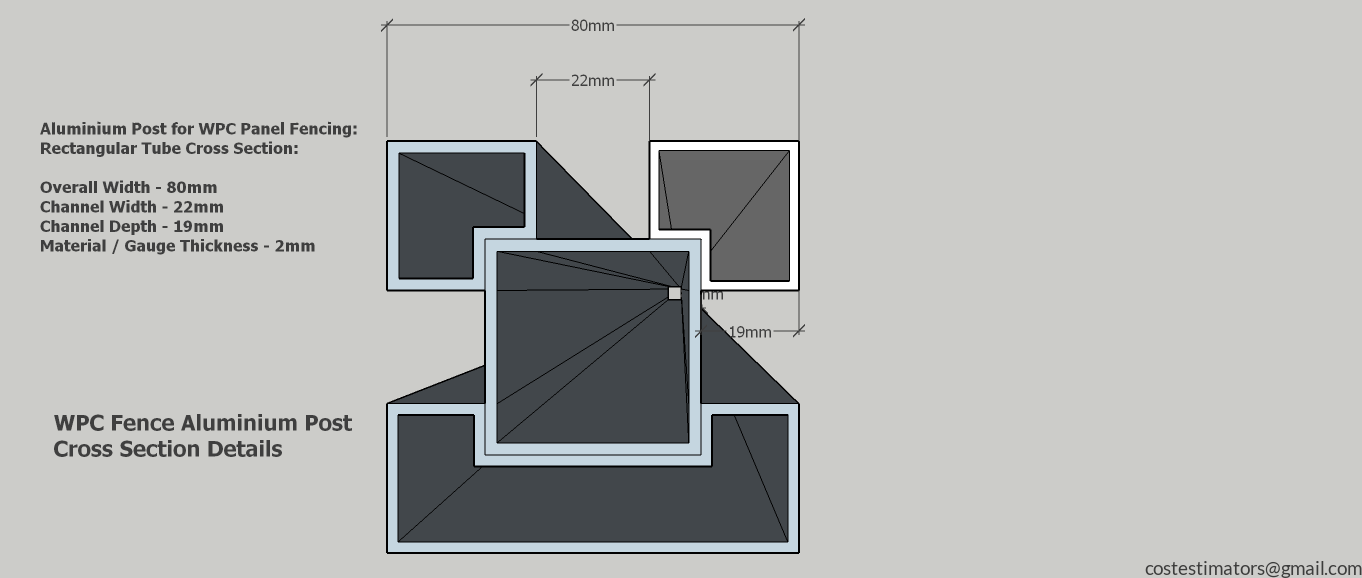

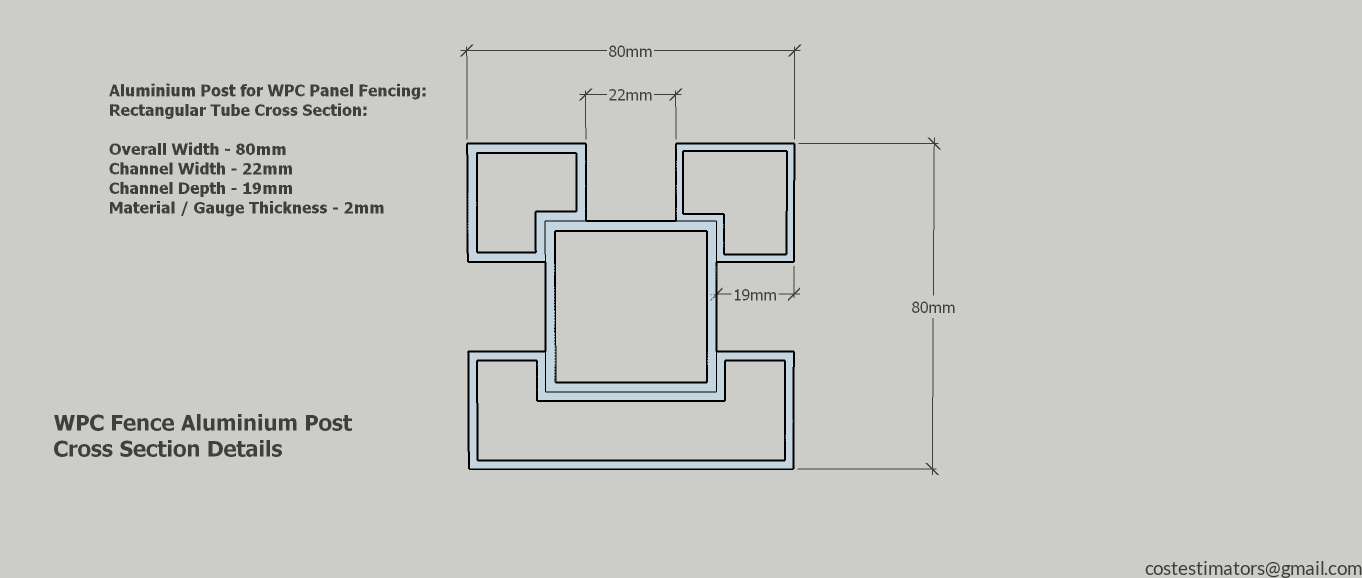

This Fabrication Drawing Shows an Aluminium Post with Square Profile, Overall Cross Section Size 80x80mm with Slots or Channels on Three Faces 22mm Wide and 19mm Deep, for Supporting a 20mm Thick WPC Channel.
Cross Section Size: 80×80 mm
Channel Width: = 22 mm
Channel Depth: = 19 mm
Material Thickness: 1.5 to 2.0 mm

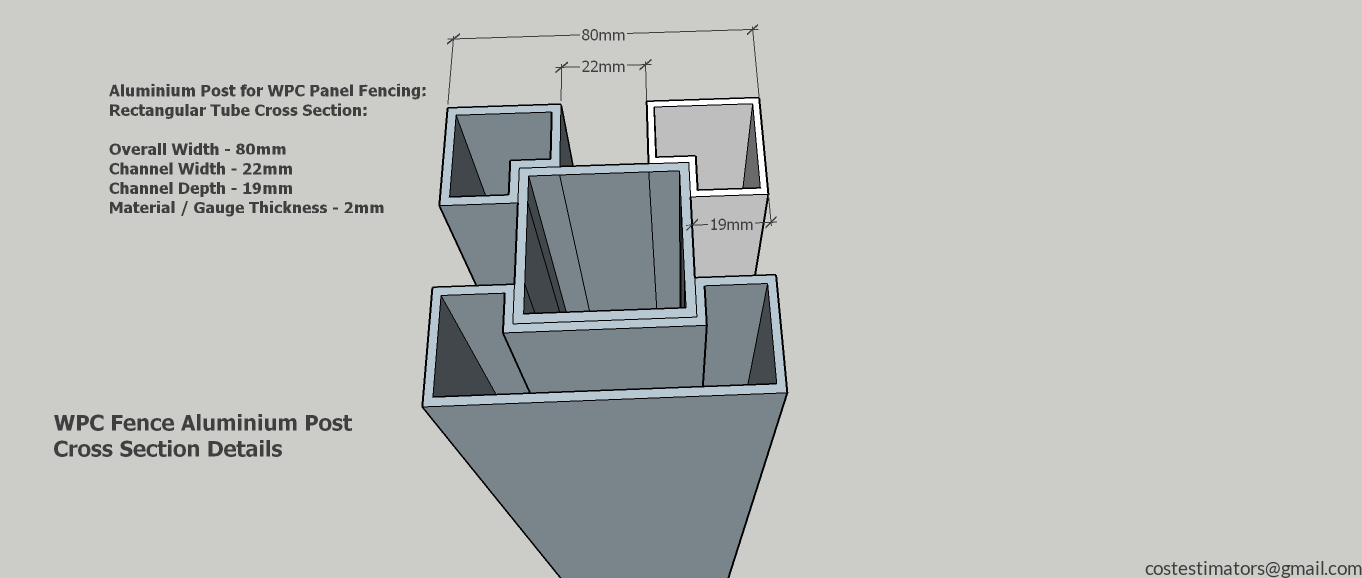

WPC Fence Aluminium Post_4C
