Outdoor WPC Fence – Foundation Details
Outdoor WPC Fence – Foundation Details

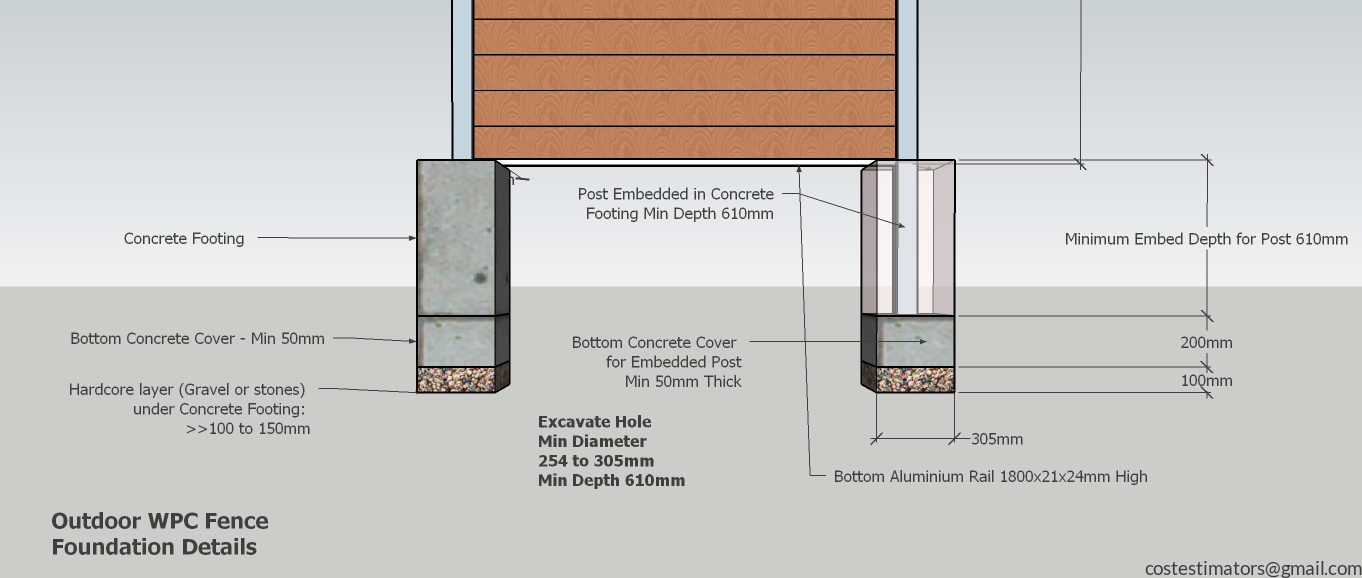

The civil engineering drawing shows the cross section details of a WPC Fence Foundation. Aluminium posts embedded in concrete, a minimum depth of 610mm below ground level. Concrete footings 305x305x810mm deep, cast-in-situ against excavated ground, laid over a hardcore layer of gravel (G4 or G5 material) 100 to 150mm thick, over compacted bottoms (subgrade).

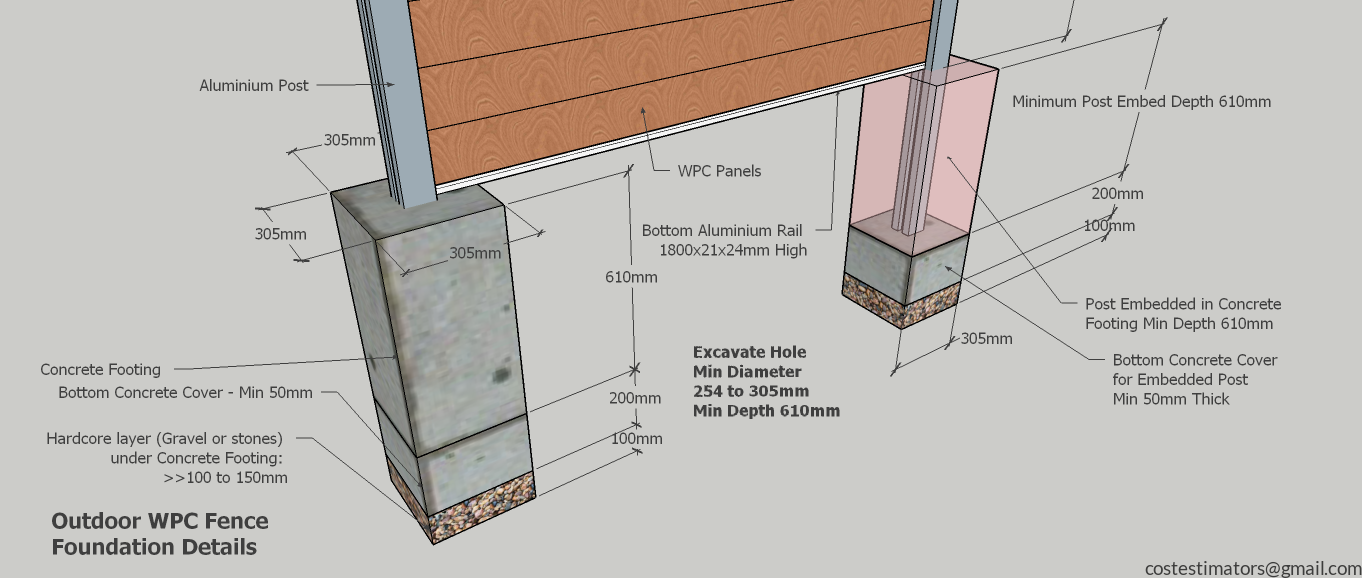

Outdoor WPC Fence – Foundation Details_4

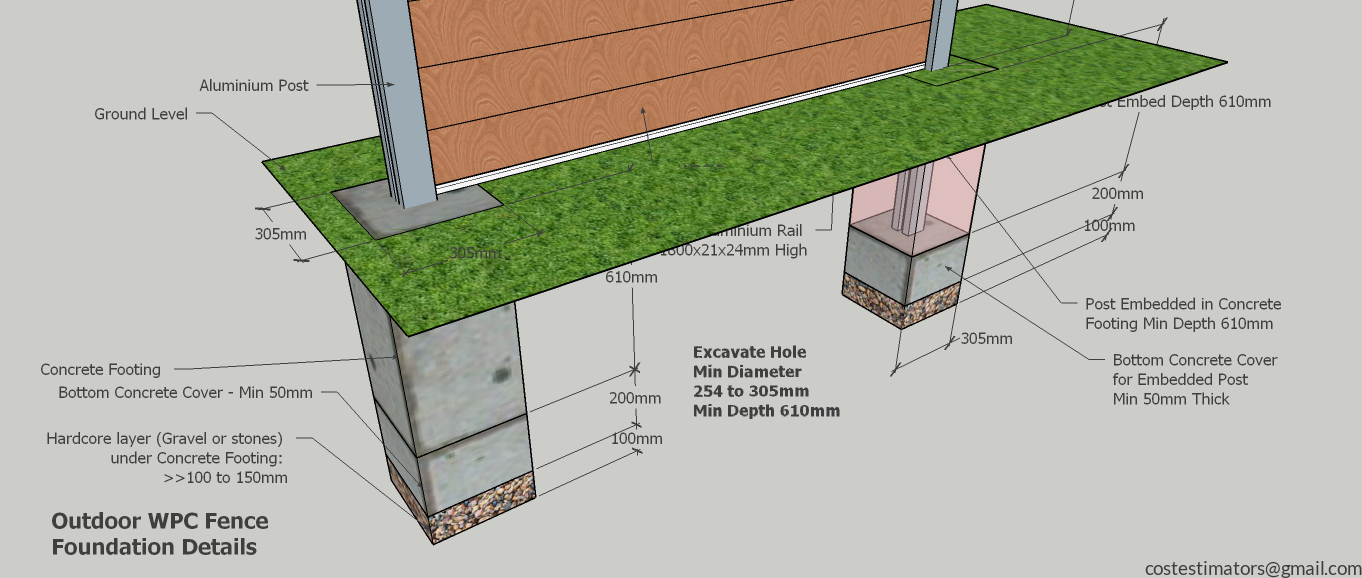

Outdoor WPC Fence – Foundation Details_5

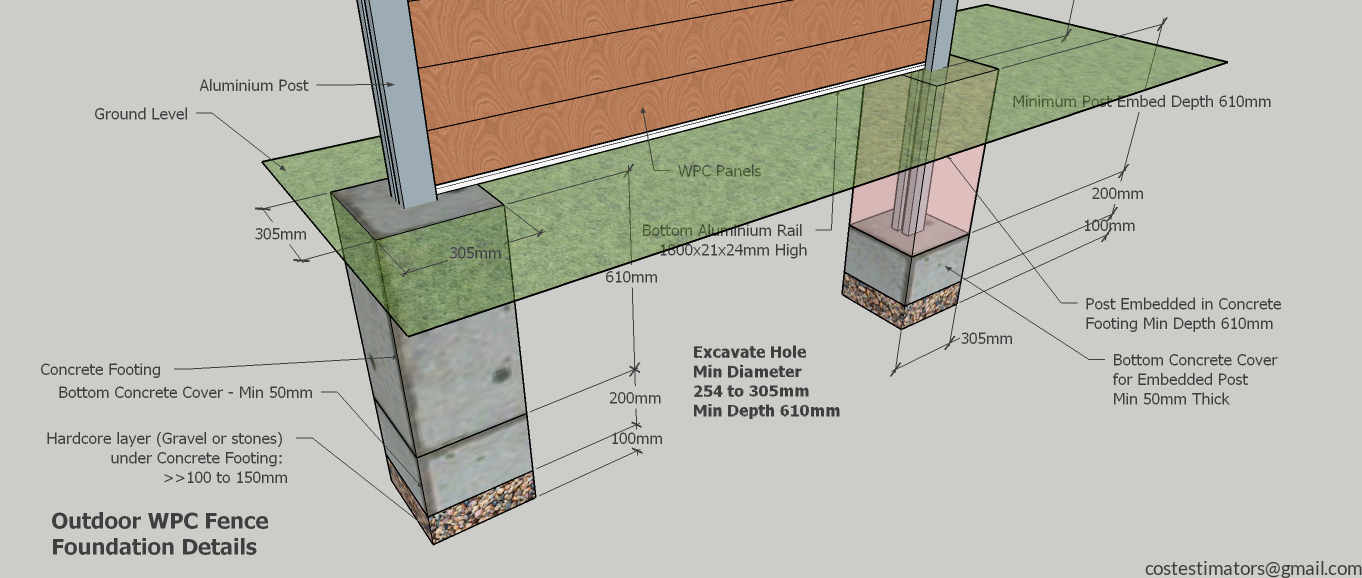

Outdoor WPC Fence – Foundation Details_8

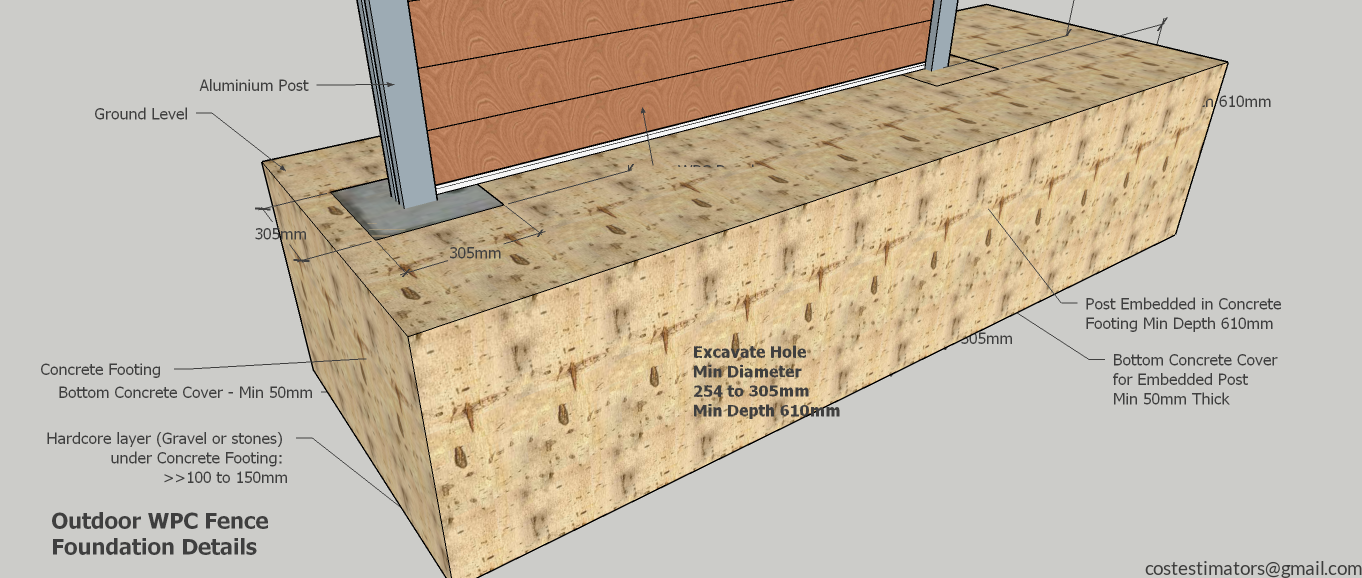

Outdoor WPC Fence – Foundation Details_9
